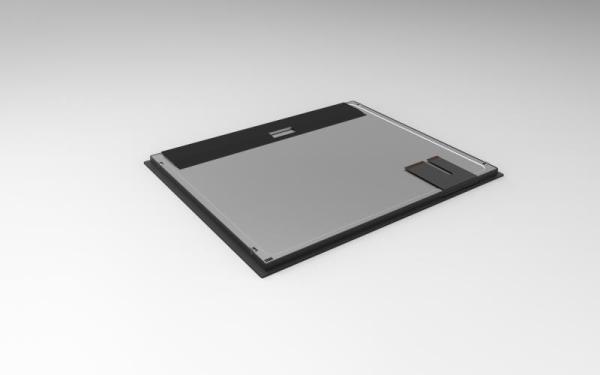

17 Inch TFT Display 1280×1024 CTP Touch Optical Bonding

Name: 17 Inch TFT Display 12801024 CTP Touch Optical Bonding
Brand: Touch-China
Price: 1 USD

China 17 Inch TFT Display 1280×1024 CTP Touch Optical Bonding wholesale

Brand Name : Touch-China

Model Number : ZCQTH-6822

Certification : CE, Rohs, FCC

Place of Origin : china

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 20K pcs / month

Delivery Time : 10-15days

Packaging Details : Standard export package

size : 17inch

Resolution : 1280×1024

Touch Points : 10points

Touch Screen : Capacitive touch screen

Surface hardness : More than 7H

Input method : Finger or capacitive pen

Working voltage : USB(5V)

Bonding way : Optical bonding (OCA)

Transmittance : ≥85%

Brightness : 250cd/㎡

Contact Now

17 Inch Optical Bonding Module of CTP Touch with TFT Display with Waterproof

Product Specification:

Items	Parameters
LCD Screen Size	17 inch
Aspect ratio	4:3
Resolution	1280×1024
Visible Area	H)337.92mm×(V)270.336mm
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)
Contrast Ratio	1000:1
Response Time	3.5/1.5 (Typ.)(Tr/Td) ms
Colors D	8Bit 16.7M , 72% NTSC
Scanning Frequency	60Hz
Interface	LVDS(See 1.2 for details)
Operation Voltage	5V

Back light Source	WLED
Center Luminance of White	250cd/㎡
Operating Lift of backlight	Min. 30K hours
Operation Voltage	37.7V~44.2V (for reference)
Operation Current	Typ current:60ma
BLU Power consumption	Max. 10.6W(for reference)
Touch Screen Type	10 point G+G capacitive touch panel
Touch Mode	Finger or capacitor pen
Response Speed	10ms
Reported Rate	100Hz
Resolution	≥4096×4096
Touch Times	Durable single-point≥30 million times
Interface	USB
Working Voltage	Typical value+5VDC
Glass Thickness	Total 2.45mm±0.2(Cover1.1mm+SCA0.25mm+Senser1.1mm)
Surface Treatment	NO
Surface Durability	Surface hardness equals glass, Moh's hardness level≥7
Transmittance	≥85%
Bonding Way	Optical bonding
Bonding Material	OCA
Thickness	0.175mm
Modele Size	(W)421mm×(H)346mm×(T)14.8mm
Net Weight	1.98KG
Working Temperature	0℃~+50℃
Storage Temperature	-20℃~+60℃
Working Humidity	≤85%RH(non-condensing)
Storage Humidity	≤85%RH(non-condensing)

LVDS Interface Pin Define:

CN1 socket(Module size):FI-X30HL (JAE)

Pin NO.	Symbol	Signal
1	RXO0-	Pixel data
2	RXO0+	Pixel data
3	RXO1-	Pixel data
4	RXO1+	Pixel data
5	RXO2-	Pixel data
6	RXO2+	Pixel data
7	GND	Ground
8	RXOCLK-	Pixel clock
9	RXOCLK+	Pixel clock
10	RXO3-	Pixel data
11	RXO3+	Pixel data
12	RXE0-	Pixel data
13	RXE0-	Pixel data
14	GND	Ground
15	RXE1-	Pixel data
16	RXE1+	Pixel data
17	GND	Ground
18	RXE2-	Pixel data
19	RXE2+	Pixel data
20	RXECLK-	Pixel clock
21	RXECLK+	Pixel clock
22	RXE3-	Pixel data
23	RXE3+	Pixel data
24	GND	Ground
25	NC	Do not connect
26	NC	Do not connect
27	NC	Do not connect
28/29/30	VDD	Power Supply Input Voltage 5V

Capacitive touch panel:

Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.

Delivery Time:

Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days

FAQ:

Q. Are you a factory or trading company?
A: We are a factory.
Q. Does your products have CE&Rohs certificates?
A: Yes.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 86”, the bigger size are researching and developing.

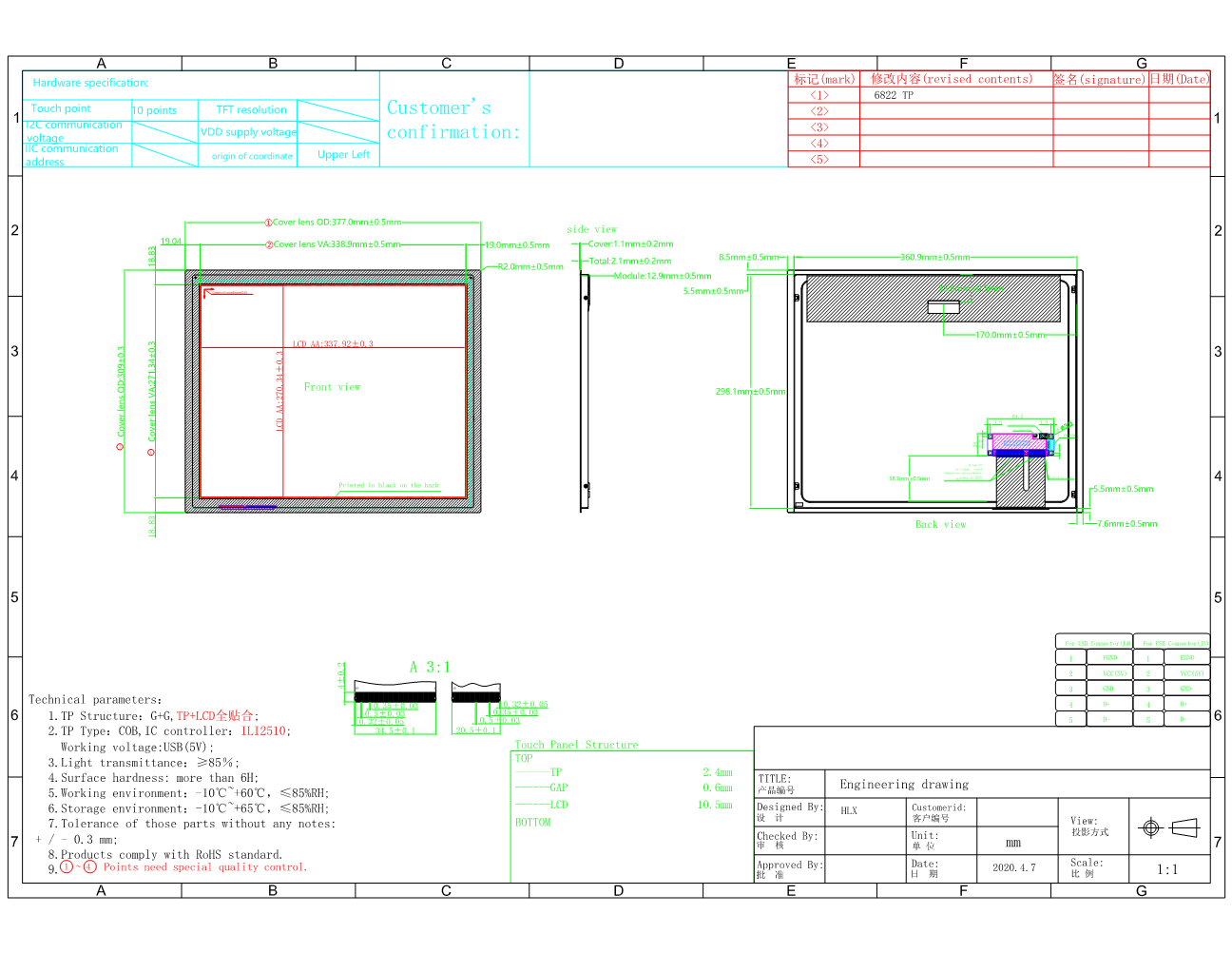

Technical Drawings:
