14 inch multi touch USB PCAP Touch Panels
with touch screen overlay
Basic specification:
| Size | 14 inch |
| Total thickness | 2.4±0.3mm |
| Outline of Cover Lens | 335*200±0.3mm |
| Outline of ITO Sensor | 330*195±0.3mm |
| Viewing Area | 311*176±0.3mm |
| Active Area | 314*179±0.3mm |
| Interface | USB |
| Input voltage | 5V |
| Response time | 10ms |
| Report rate | 100 HZ |
| Input method | Hand writing or capacitive pen |
| Transmittance | ﹥85% |
| Package list | 14 inch Touch panel,controller board and USB cable |
Features:
1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 65 inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. USB/IIC port
7. Low MOQ
Applications:
Kiosk,Karaoke,All in one,Digital Signage,Tablet pc,Advertising player,
Education Whiteboard,Medical device,Industrial pc panel,Multi-touch table,
POS,Restaurant menu,ATM etc.
Competitive advantages:
1. We have 17-year experience in designing and manufacturing touch panels.
2. We have strong research team for both software and hardware and provide before and after-sale service.
3. We cooperate with excellent customers and suppliers.
4. We have long-term cooperation with excellent IC suppliers all over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.
Delivery time:
Sample: 10-15 working days
Mass production:
1.Small sizes(smaller than 12.1 inch): 18 working days.
2.Large sizes(larger than 12.1 inch):20-25 working days.

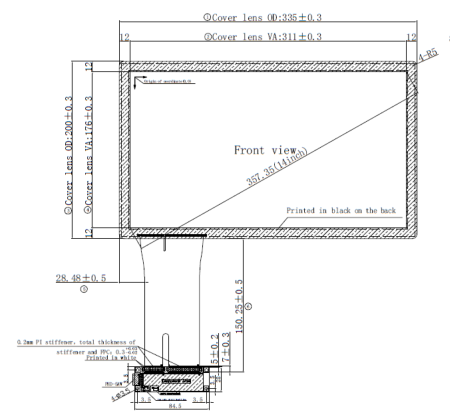

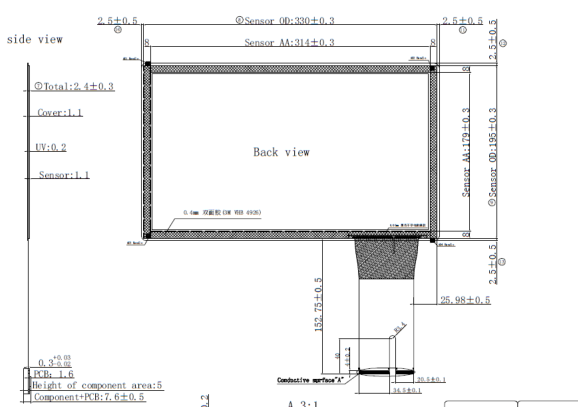

Product drawing:
Product Tags:
|
|
14inch Multi Touch USB PCAP Touch Panel with 16:10 Ratio and COB type Touch Images
|
