Industrial Touch Screen with 12.1inch 10 points capacitive multi-touch screen
Product Specification:
| Size: | 12.1inch |
| Total Thickness: | 3.3±0.2mm |
| Outline of Cover Lens: | 259.5*203±0.2mm |
| Outline of ITO Sensor: | 258.7*201±0.2mm |
| Viewing Area: | 246.76*185.32±0.2mm |
| Active Area: | 248.36*186.92±0.3mm |
| TP Structure: | G+G |
| Controller: | ILITEK, WEIDA, EETI, Silicon Works etc.(Optional) |
| Cover glass thickness: | 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional) |
| Cover glass treatments: | AG, AR, AF, AE (Optional) |
| CTP interface: | USB |
| Operating system: | Win7, Win8, Win10, WCE, Android, Linux, XP |
| Working temperature and humidity: | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, FCC, Rohs |
| Aspect ratio: | 4:3 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Warranty: | 1 Year |
Features:
Response speed fast, smooth touch.
Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms.
Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
Precision-touch capacitive screen is using the body's current-sensing.
Accuracy up to 99% proficient in writing, no break no drift.
Completely dead 10-point touch really, any point can withstand more than 50 million times touch
No ghost after the first calibration, drift-free.
Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable.
Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems.
Delivery Time:
Samples in stock: 1~3 working days
Customized project: 10~15days for samples
Mass production: 10~18days
FAQ:
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q: Can we make customized products?
A: Yes, we customize touch panel from 3.5”-86”.
Q: What are your lead times?
A: Generally, 1-3 days for samples in stock, 10-15 days for customized samples.
Q: What's the payment?
A: T/T or 30% advance payment, 70% balance before shipment.
Application:
Point-of-information kiosks
Vending and ticket sales
Electronic catalogs
Gaming, lottery, and amusement
Public pay phones
Multimedia marketing
Banking/financial transactions
Industrial control rooms
Computer-based training
Competitive advantages:
1. We have 23-year experience in designing and manufacturing touch panels.
2. We have strong research team for both software and hardware and provide before and after-sale service.
3. We cooperate with excellent customers and suppliers.
4. We have long-term cooperation with excellent IC suppliers all over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.
Capacitive Touch Screen:
Capacitive touch screen is very different with traditional resistive touch screen. When the resistive touch screen works, you can only judge a touch point. And if there are two or more touch points, you can not make the right judgments. So the resistive touch screen applies only to judge a few simple actions such as click, drag and drop. The capacitive multi-touch screen can decompose the user's touch into colleting multi-point signal and determining the significance of the signals, and complete the judgments of complex action. Moreover, you can feel it when you lightly touch the projected capacitive touch sensor panel. Better durability, more than 90% light transmission rate, high transparency than the traditional resistive touch screen are the advantages of our products.

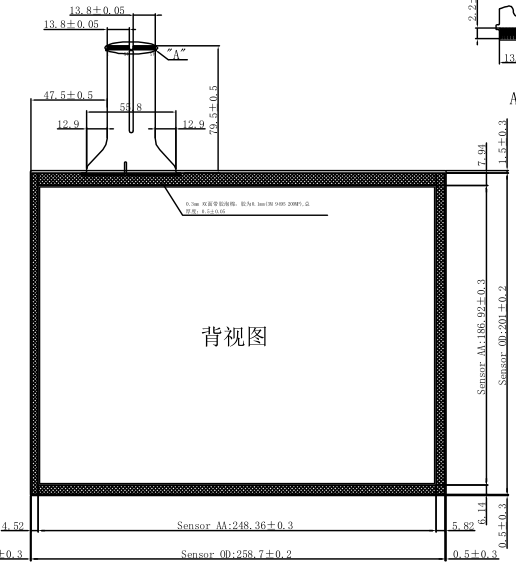

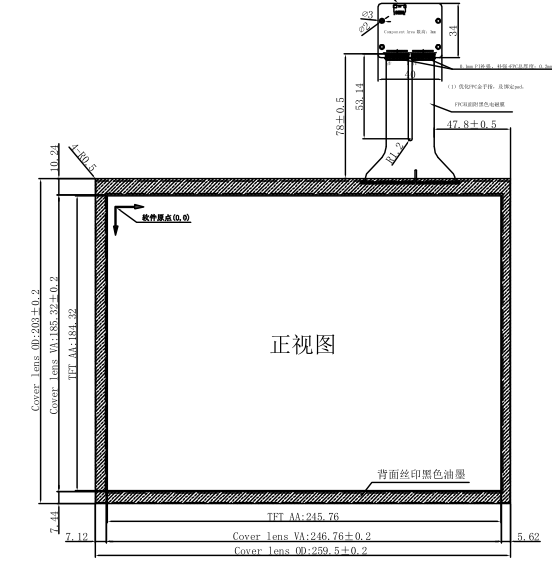

Technical Drawings:
