Embedded Touch All-in-one, 13.3'' Full HD Industry Touch & Display Solution
All serie of touch monitor: metal shell from 10.1'' to 21.5'' . Plastic shell from 13.3'' to 27''. Contact us for more detail!
Basic specification:
1. Technical index of Display
| Index | Parameter |
| Panel | Screen Size | 13.3 inch |
| Panel type | LCD |
| Interface | Dual LVDS 8bit |
| Backlight type | WLED |

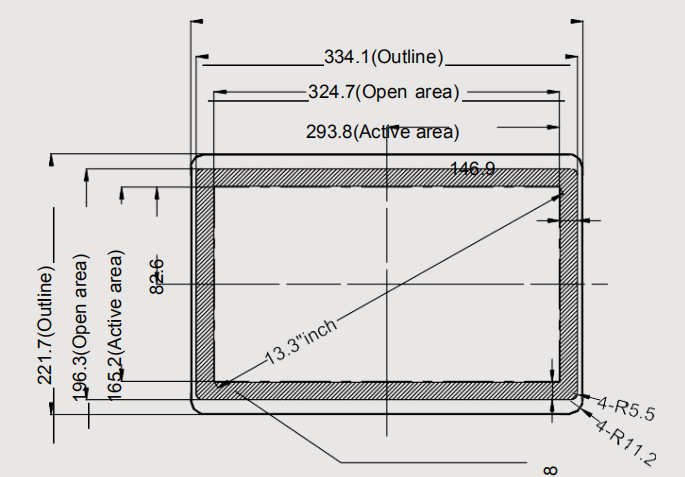

| Display area size | (H)293.8mm×(V)165.2mm |

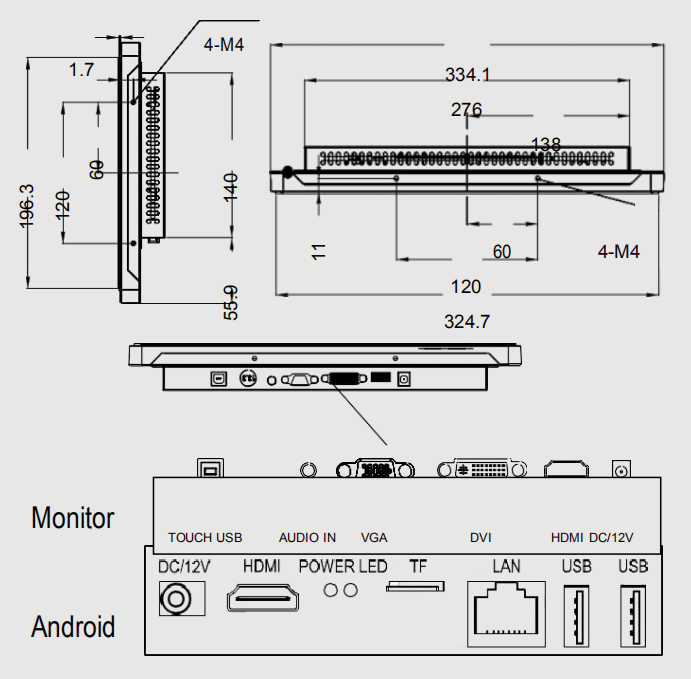

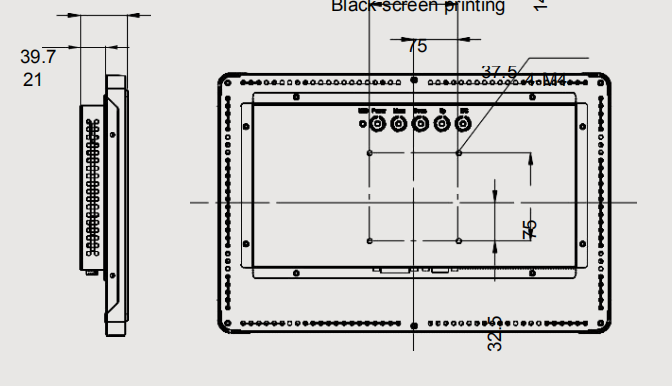

| Appearance size | 334.1*221.7*39.7mm |
| Resolution | 1920×1080★ |
| Pixel spacing | 0.248mm×0.248 ★ |
| Dynamic contrast | 800:1 ★ |
| Brightness | 300cd/m2 ★ |
| Display scale | 16:9 |
| Visual angle | View Angle Free(R/L 178(Typ.),U/D 178(Typ.)) |
| Response time | 30ms(Try,on/off) |
- Technology index of touch control device
| Index | | Parameter |
| Function index | Touch panel size | 13.3inch matches with display device ★16:9 |
| Touch method | 10 points capacitive touch |
| Thickness of cover glass | 1.8mm |
| Total thickness | 2.4±0.3 |
| Resolution | ≥4096×4096 ★ |
| Response speed | 10ms |
| Reported rate | 100HZ |
| Mechanical function | Input method | Hand writing or capacitive pen |
| Touch times | Durable single-point≥30 million times |
| The smallest diameter of touch object | 8mm |
| Explosion-proof | 227g±2g, 100cm, No damage after the impact at the central area for once. ★ |
| Surface Durability | Surface hardness equals glass, Moh's hardness level≥7 |
| Optical index | Transmittance | ≥85% |
| working environment | -10-60℃,20-85RH |
| Electrical characteristics | Working voltage | Typical value+5VDC,Allowance range+4.75v~+5.25v |
| Power supply | USB bus |
| Interface | USB |
| Control driver | IC solution | ILI2511 |
Features:
ZCK-133TM are industrial-grade 13.3'' TFT LCD with LED backlightflat panel monitor with an Al-Mg front panel, a modern appearance, and one of the most competitive prices for 13.3'' LCD with LED backlight monitor on the market. The ZCK-133TM are also extremely light and thin, and provides many industrial-grade features such as a stainless steel chassis, VESA mounting flexibility, and more. The ZCK-133TM are especially suitable for industrial PCs such as IP65. This combination leads to an extremely reliable and tough system, ready to operate in a wide variety of industrial applications.

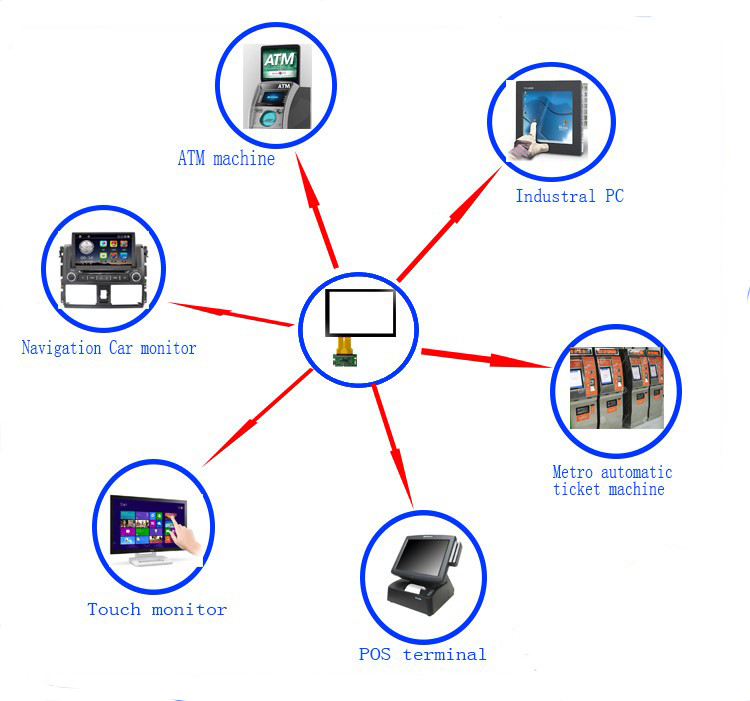

Applications:
Kiosk,Karaoke,All in one,Digital Signage,Tablet pc,Advertising player,
Education Whiteboard,Medical device,Industrial pc panel,Multi-touch table,
POS,Restaurant menu,ATM etc.
Competitive advantages:
1. We have 23-year experience in designing and manufacturing touch panels.
2. We have strong research team for both software and hardware and provide before and after-sale service.
3. We cooperate with excellent customers and suppliers.
4. We have long-term cooperation with excellent IC suppliers all over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.
Delivery time:
Sample: 10-15 working days
Mass production:
1.Small sizes(smaller than 12.1 inch): 18 working days.
2.Large sizes(larger than 12.1 inch):20-25 working days.
Applications:
Kiosk,Karaoke,All in one,Digital Signage,Tablet pc,Advertising player,
Education Whiteboard,Medical device,Industrial pc panel,Multi-touch table,
POS,Restaurant menu,ATM etc.
Product Tags:
|
|
Industry 13.3'' Full HD Open Frame Monitor Touch Screen Embedded Touch All In One Images
|
